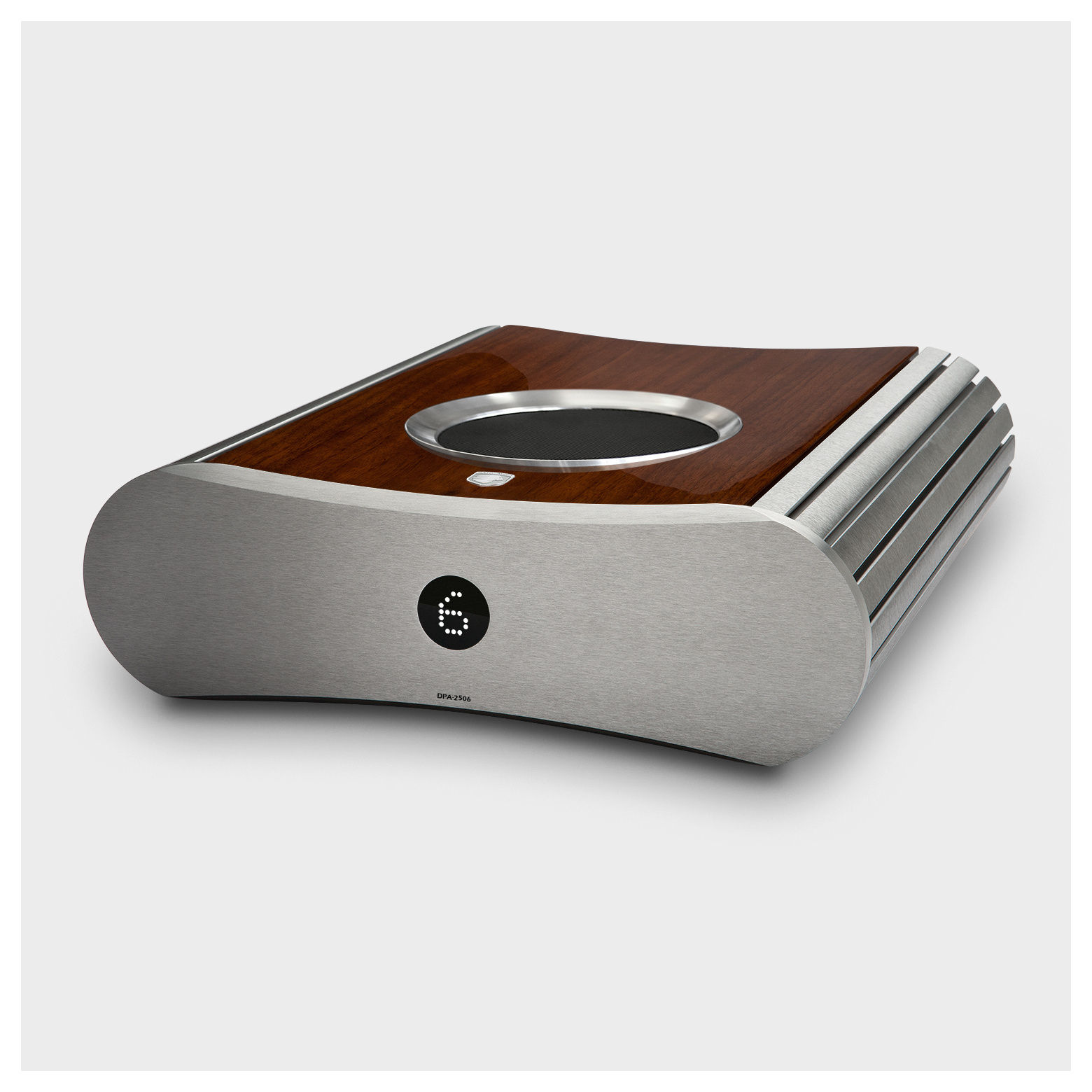

DPA-2506 Six Channel Power Amplifier

DPA-2506 Six Channel Power Amplifier

Great Solution for Home Cinema customers!

The Gato Audio DPA-2506 is a 6 channel flexible power amplifier, that offers unparalleled power and performance in the smallest and most beautiful package.

Pure Muscle!

The DPA-2506 offers no less than 6x250W in 8ohm load, doubling in 4ohm. Each pair of channels are bridgeable – enabling this fully configurable powerhouse to be used for either multichannel setups, active systems or for bi-amping speakers.

This amplifier is the obvious choice for the Gato Audio PRD-3S preamplifier/DAC, but is also very suitable as a workhorse for the integrated amplifiers DIA-250S and DIA-400S – offering even more channels and flexibility.

For multichannel systems it will serve as a slave for a surround processor perhaps in combination with a PRD-3S, DIA-250S or DIA-400S enabling their Home Theater setting.

Class-D Output Stage

The DPA-2506 amplifier offers three state of the art Class-D output stages each with dedicated and optimized switch mode power supplies. The multiple stage power amplifiers are built around proven technology from International Rectifier, optimized with precision high frequency oscillators and PWM modulators. Precision switching MOS-FET transistors, with super low on-resistance ensures the high frequency switching is done perfectly and with as little loss as possible. The output filters are made from quality PP capacitors and low DCR coils, converting the high power PWM signals back into detailed and smooth analogue music.

Configuration Options Galore

@8ohm

6 Channels: 6x 250W

3 Channels: 3x 900W

4 Channels: 2x 900W + 2x 250W

5 Channels: 1x 900W + 4x 250W

@4ohm

6 Channels: 6x 500W

3 Channels: 3x 1050W

4 Channels: 2x 1050W + 2x 500W

5 Channels: 1x 1050W + 4x 500W

Techical Specification

Output power @ 8 O 6x250W / 3x900W / 2x900W +2x250W / 1x900W+4x250W

Output power @ 4 O 6x500W / 3x1050W / 2x1050W +2x500W / 1x1050W +4x500W

Frequency response 20 Hz-20 kHz - 0.5 dB, and 2 Hz-70 kHz - 3 dB

Total Harmonic Distortion < 0,01% at rated power

Signal to noise ratio > 110 dB

Input impedance 20 kO RCA or 40 kO Balanced

Voltage gain 26 dB

Recommended speaker load SE 4 -16 O , BTL 8 -16 O

Connectors

Balanced analogue inputs 3 pairs gold plated XLR Neutrik

Unbalanced analogue inputs 3 pairs of gold plated RCA Stereo

Speaker output 6 pairs of gold plated safety banana

Trigger, 12 V 1 pc mini jack

Size and Weight

Power Requirements 115 VAC/230 VAC, 50 Hz/60 Hz, 2000W max

Power consumption stdb/idle/max < 1W/75W/2000W

Dimensions (WxHxD) 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5"

Weight 13 kg / 28.7 lb
